# Flexbox

• As we saw earlier in this course, display: flex (a.k.a. flexbox) is one of the possible display types
• The idea behind the CSS Flexible Box Layout Module is that you should be able to spread all parts of a web page horizontally and vertically with a "flexible flow"
• Almost all modern CSS frameworks like Bootstrap and Materialize use flexbox to position elements on a page (e.g. grid, cards, navigation bars, ...)

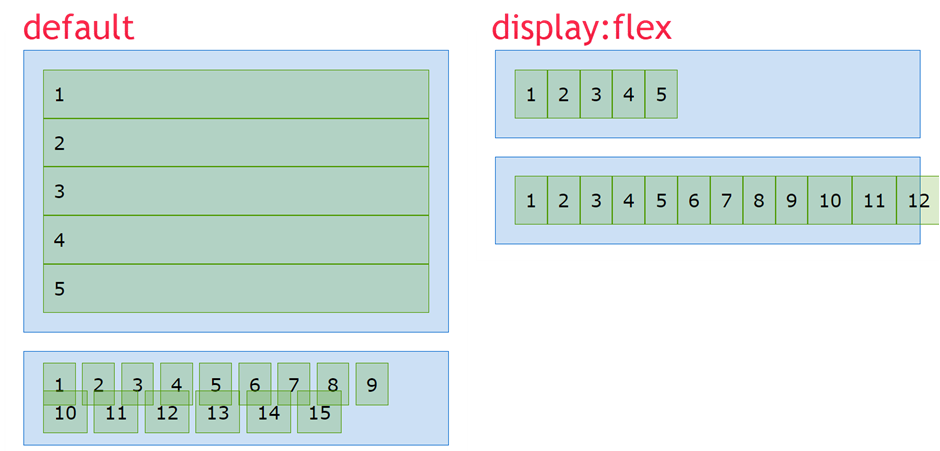

• When you set an element to display:flex only the element itself (the flex container) and its DIRECT children (flex items) are affected!

• Before we discuss the different properties of the flex container and the flex items, let's look what happens when you add display: flex to the .parent class

# Flex container (parent)

# flex-wrap

• The flex-wrap property determines how the flex items behave if they don't fit inside the flex container

# flex-direction

• The flex-direction property determines how the flex items are placed inside the flex container

# flex-flow (shorthand)

• flex-flow is just a shorthand for flex-direction and flex-wrap. The order of the values does not matter. For example:
  • flex-flow: row wrap;
  • flex-flow: column-reverse wrap-reverse;

# justify-content (main axis)

• The justify-content property determines how the flex items are distributed along the main axis of the flex container
• The table below contains the most used (not all) values for this property

.parent {
    width: 200px;
    height: 200px;
    display: flex;
    ...
}

.child {
    width: 2rem;
    height: 2rem;
    text-align: center;
    line-height: 1;
    ...
}

# align-items (cross axis)

• align-items distributes all flex items along the cross axis (just like justify-content does for the main axis)
• Some of the align-items values (flex-start, flex-end and center) react the same as the values for justify-content
• The table below contains the most used (not all) values for this property

.parent {
    height: 20rem;
    display: flex;
    flex-flow: row wrap;
    ...
}
.child {
    padding: .5rem;
    border: 1px solid #4D9900;
    background-color: rgba(77, 153, 0, 0.2);
}

.child:nth-child(2) {
    font-size: 2rem;
}

.child:nth-child(3) {
    font-size: 1.5rem;
}

# Exercise

• Try to predict what happens when you set (in the previous example):
  1. flex-flow: row nowrap;
  2. flex-flow: row wrap; and justify-content: center;
  3. flex-flow: row wrap; and justify-content: space-between;
  4. flex-flow: column wrap; and experiment with some values of justify-content
  5. ...

# align-content (multi line - cross axis)

• align-content distributes all flex lines along the cross axis

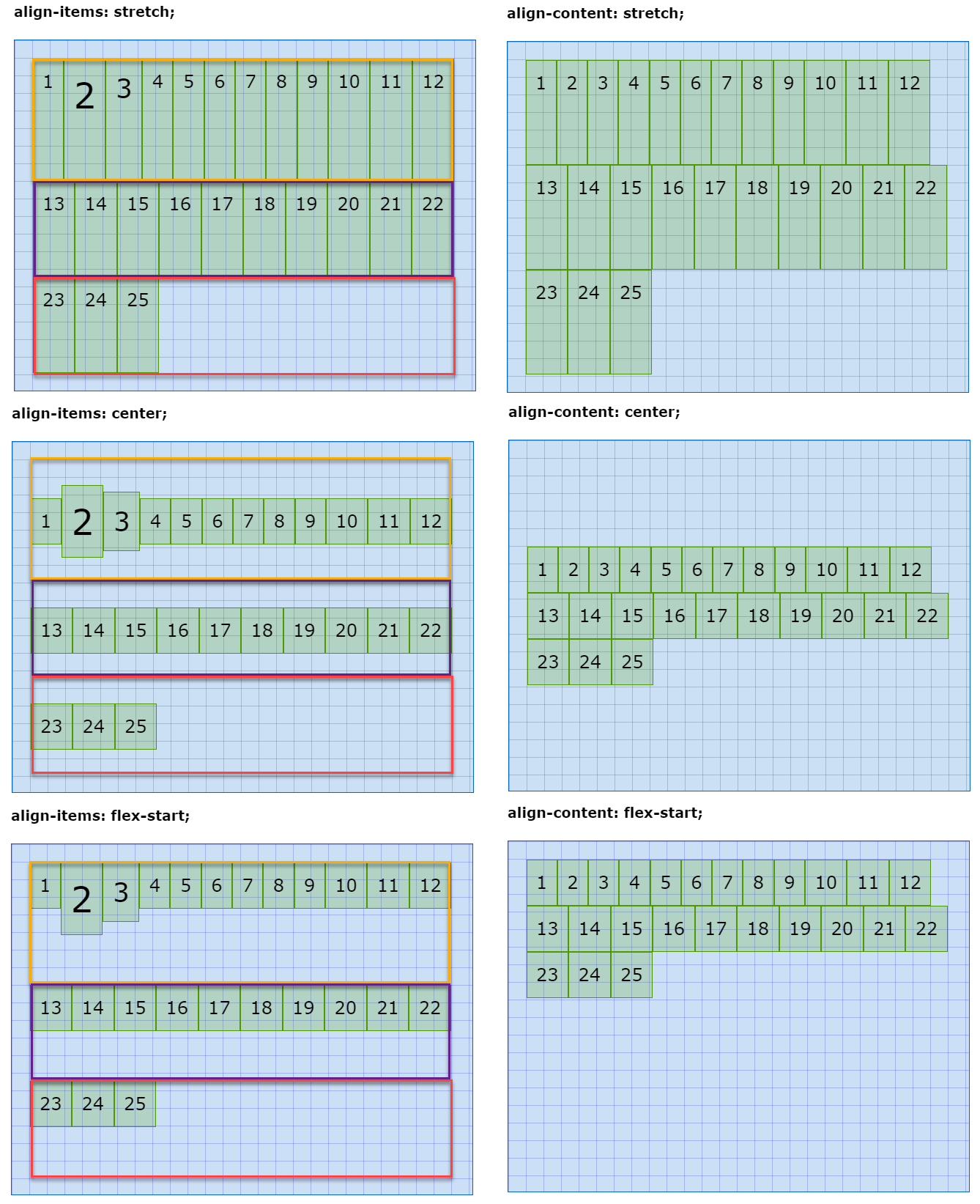

• Some of the align-content values (flex-start, flex-end, center, space-between, space-around and space-evenly) react the same as the values for justify-content
• The table below contains the most used (not all) values for this property

# Exercise

• Try to predict what happens when you set (in the previous example):
  1. flex-flow: column wrap;
  2. flex-flow: column wrap; and justify-content: center;
  3. flex-flow: column wrap; and justify-content: space-evenly;
  4. ...

# Examples

• For our first examples, we don't need any of the flex related properties on the flex item

# Perfectly centered text

1. Set the parent element (article) as a flex container
2. Set the height of the flex container to 100% of the viewport height
3. Center the text on the main axis and on the cross axis

article {
    display: flex;
    height: 100vh;
    justify-content: center;
    align-items: center;
    background-image: linear-gradient(to bottom, #cbe25f, #7e8627);
}

This is an alternative for the line-height:100% that we've seen earlier in the course. Using flexbox has the added advantage that you can center every element (div, p, ...) instead of just one line of text.

# Perfectly centered, responsive image

• The figure element has exactly the same flexbox properties as the article in the previous example

figure {
    display: flex;
    height: 100vh;
    justify-content: center;
    align-items: center;
    background: linear-gradient(to bottom right, #5A98BF, white);
}

• To ensure that the image always falls within the viewport in both landscape mode and portrait mode, we set the height of the image to 80% of the SMALLEST dimension of the viewport (height: 80vmin)
  • More info about vmin can be found here: Understanding vMin and vMax in CSS

img {
    height: 80vmin;
    border: 1px solid #000;
    box-shadow: 0 0 20px rgba(0, 0, 0, .6);
}

# Flex item (child)

# align-self (cross axis)

• align-self can be used to overwrite the global align-items property for a specific item element

• In the example below:
  • The default alignment on the cross axis is flex-start

















  .parent {
    height: 20rem;
    display: flex;
    flex-flow: row wrap;
    justify-content: space-around;
    align-items: flex-start;
    ...
  }


  1
  2
  3
  4
  5
  6
  7
  8

  • The second and the tenth item are centered on the cross axis











  .child:nth-child(2),
  .child:nth-child(10) {
      align-self: center;
      background-color: rgba(153, 47, 0, 0.2);
  }


  1
  2
  3
  4
  5

  • The third, seventh and last item are pushed to the end on the cross axis












  .child:nth-child(3),
  .child:nth-child(7),
  .child:last-child {
      align-self: flex-end;
      background-color: rgba(88, 0, 153, 0.2);
  }


  1
  2
  3
  4
  5
  6


# order (main axis)

• By default, every item is ordered according to the position in the DOM and has an order value of 0
• You can change the individual order of each item by giving the order property a positive or negative value

• In the example below:
  • The default order on the main-axis is 0
  • The second and the tenth item have an order number of -1











  .child:nth-child(2),
  .child:nth-child(10) {
      order: -1;
      background-color: rgba(153, 47, 0, 0.2);
  }


  1
  2
  3
  4
  5

  • The third and the last item have an order number of 1











  .child:nth-child(3),
  .child:last-child {
      order: 1;
      background-color: rgba(88, 0, 153, 0.2);
  }


  1
  2
  3
  4
  5

  • The fifth item has an order number of 2










  .child:nth-child(5) {
    order: 2;
    background-color: rgba(0, 30, 153, 0.2);
  }


  1
  2
  3
  4


# flex-grow (main axis)

• In the example below, all flex items have a fixed width of 3rem
• Even if there is more space than 9rem (three items of 3rem) in the flex container, the items will not be wider than their original size
  • You can adjust this behavior via the flex-grow property
• Every item has a default value of flex-grow: 0

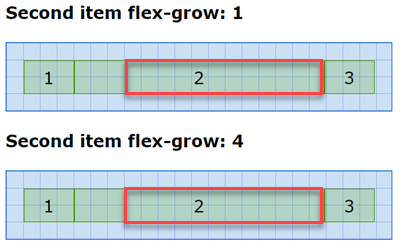

• If you specify exactly one item with a value greater than 0, this item will take up all the remaining width

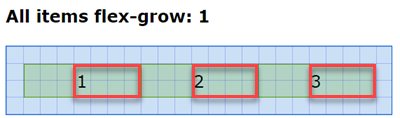

• If you specify all items with the same value, but greater than 0, all items get an equal share of the remaining width

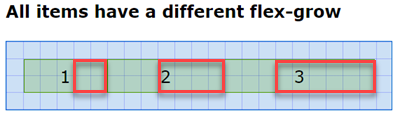

• If you specify different values for every item, you can calculate the share of each item
  • The first item has flex-grow: 2, the second item flex-grow: 4 and the last item flex-grow: 6
  • This is a total of 2 + 4 + 6 = 12
  • The first item get 2/12 of the remaining space, the second item gets 4/12 and the last item 6/12

# flex-shrink (single line - main axis)

• In the example below, all flex items have a fixed width of 10rem and the flex container has a max-width of 23rem (minus the padding is 21rem for the content)
• If there is not enough space for the flex items to fit in the flex container, the flex items will all shrink at the same rate by default
  • You can adjust this behavior via the flex-shrink property

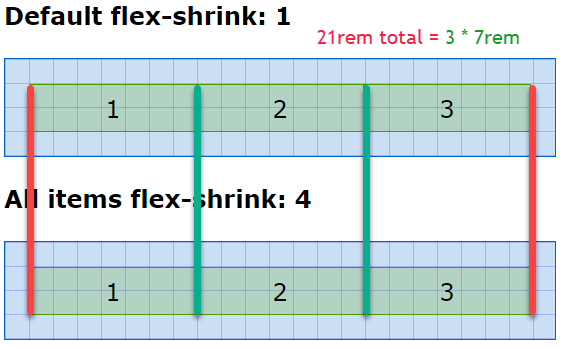

• Every item has a default value of flex-shrink: 1
• So, 21rem / 3 items is 7rem per item
  • Note that you get the same result when you give all flex items the same flex-shrink value!

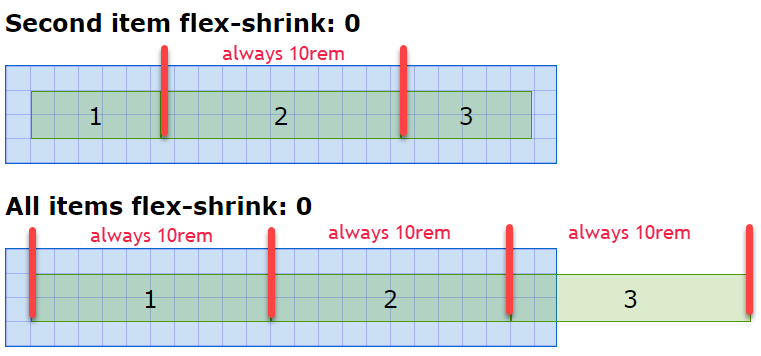

• If you specify one or more items with a value of 0, these items will not shrink

• You can also specify different values for every item
  • The first item has flex-shrink: 2, the second item flex-shrink: 4 and the last item flex-shrink: 6
  • The second item shrinks (4/2=) two times faster then the first item
  • The third item shrinks (6/2=) three times faster then the first item

.parent {
    max-width: 23rem;
    display: flex;
    flex-wrap: wrap;
    ...
}

# flex-basis (main axis)

• The flex-basis property sets the initial size of a flex item on the main axis
• The default value for flex-basis is auto
• If the normal size (width or height, depending on the direction) is also set, then a flex-basis property other than auto will overwrite these settings
  • If flex-direction: row then flex-basis overwrites the width property
  • If flex-direction: column then flex-basis overwrites the height property
• The properties min-width, max-width, min-height and max-height can still be used and are not effected by flex-basis

• In the first example, all flex items have only a width and a height of 3rem
• In the second example, all flex items have also a width and a height of 3rem
  • the second item has a flex-basis of 5rem and overwrites width: 3rem;
  • the third item has a flex-basis of 10rem and overwrites width: 3rem;

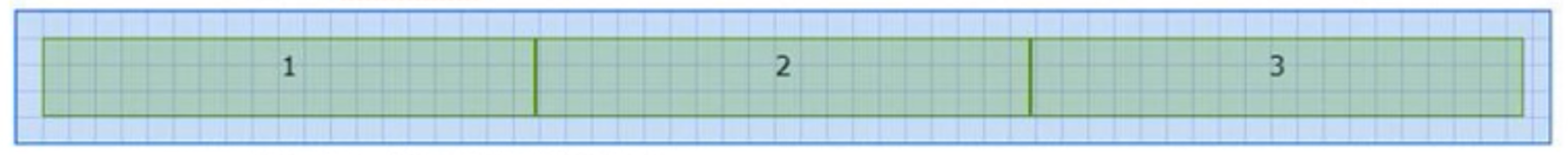

Example with flex-basis of 100%

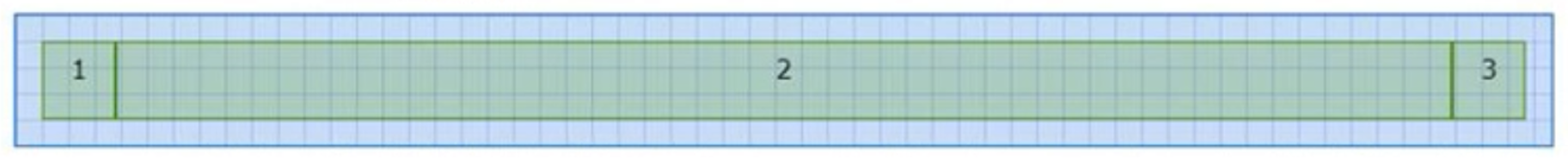

Example with only the second div a flex-basis of 100%

# Exercise

• Change the flex-direction of the flex container to column and see how the flex-basis property now overwrites the height property instead of the width property

# flex (shorthand)

• Flex is just a shorthand for flex-grow, followed by flex-shrink and flex-basis
• Some (common) examples:

# Examples

# Basic navbar

• A basic navbar (without styling) requires only 5 lines of flex related properties
• Just for demonstrating purposes, all relevant elements have an outline (ul is blue, li is green and a is red)

1. Transform the unordered list to a flexbox and remove the bullets from the unordered list

nav ul {
    display: flex;
    list-style-type: none;
    outline: 1px solid #0066CC;
}

2. Spread all list items equally along the main axis

nav li {
    flex: 1 1 auto;
    /* display: flex; */
    outline: 1px solid #7600cc;
    outline-offset: -2px;
}

3. Make every list item a flex container and spread its child element (the anchor tag a) to its full width, such that it looks like the whole list item is clickable

nav li {
    flex: 1 1 auto;
    display: flex;
    outline: 1px solid #7600cc;
    outline-offset: -2px;
}
nav a {
    flex: 1 1 auto;
    outline: 1px solid #cc4b00;
    outline-offset: -4px;
}

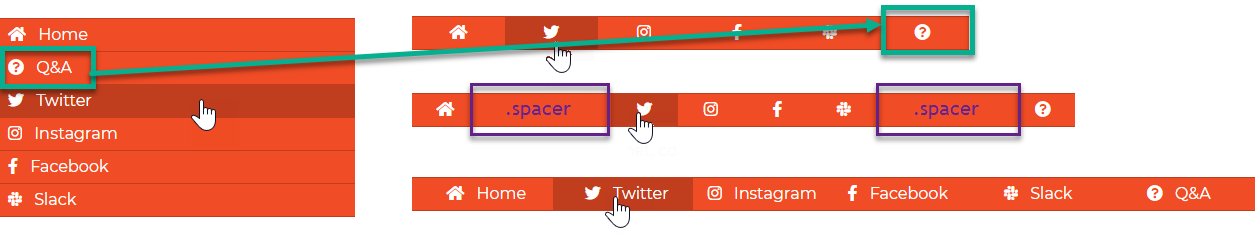

# Responsive navbar with styling

1. Screen size < 400px
   • Show all list items in a column
   • The two li.spacer elements are not visible

























   nav ul {
      display: flex;
      flex-direction: column;
      ...
   }
   nav li {
      display: flex;
      ...
   }
   nav a {
      flex: 1 1 auto;
      ...
   }
   nav li.spacer {
      display: none;
   }


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16

2. Screen size >= 400px and < 600px
   • Switch the orientation of the list items from column to row
   • Each list item must grow with the same amount so that they are equally distributed along the entire width
   • The content inside every anchor tag a is horizontally centered
   • Only the icon inside the anchor tag a is visible, the text is hidden
   • The link Q&A is moved to the far right of the navbar
   • The two li.spacer elements are (still) not visible



































   @media screen and (min-width: 400px) {
       nav ul {
           flex-direction: row;
       }
       nav li {
           flex: 1 1 auto;
       }
       nav a {
           text-align: center;
       }
       nav a span {
           display: none;
       }
       .qa {
           order: 1;
       }
   }


   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17

3. Screen size >= 600px and < 800px
   • Make the two li.spacer visible and let them grow twice as fast as the other list items













   @media screen and (min-width: 600px) {
       nav li.spacer {
           display: block;
           flex: 2 1 auto;
       }
   }


   1
   2
   3
   4
   5
   6

4. Screen size >= 800px
   • Hide the two li.spacer elements again
   • Show the text on the right side of every icon

















   @media screen and (min-width: 800px) {
       nav li.spacer {
           display: none;
       }
       nav a span {
           display: inline;
       }
   }


   1
   2
   3
   4
   5
   6
   7
   8

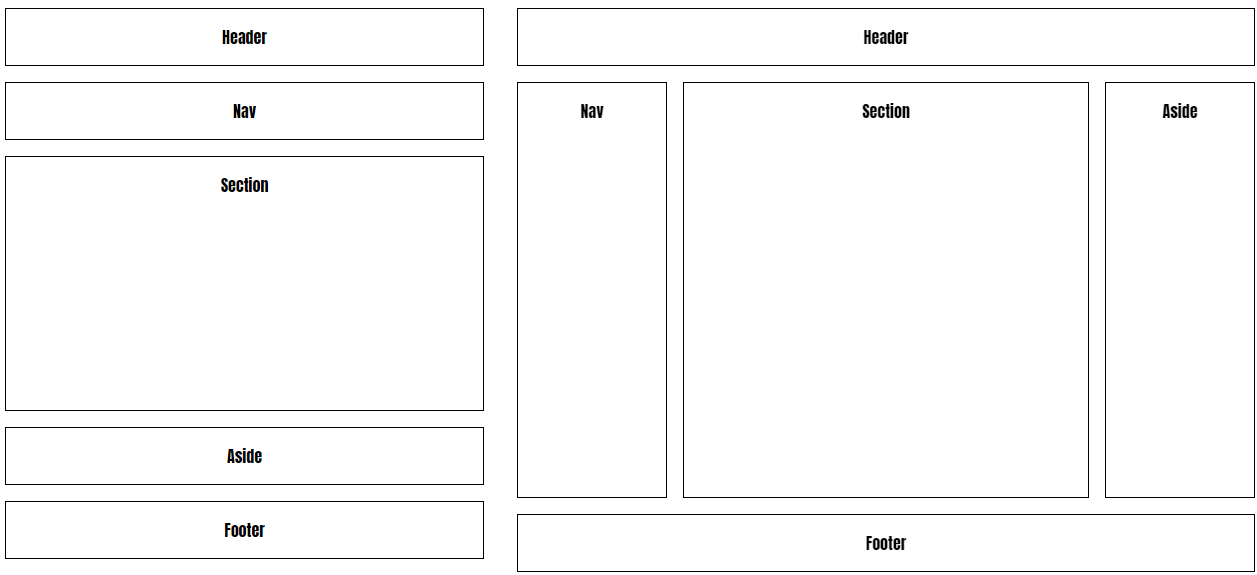

# Full page layout

• All the flex magic happens inside the main container
• Small screen
  • nav, section and aside are positioned below each other

main {
    display: flex;
    flex-direction: column;
}

• Large screen
  • nav, section and aside are positioned next to each other
  • nav and aside have a fixed width of 150px
  • The section takes the rest of the space with a left and right margin of 1rem

@media screen and (min-width: 600px) {
    main {
        flex-direction: row;
    }
    nav, aside {
        flex: 0 1 150px;
    }
    section {
        flex: 1 1 auto;
        margin-left: 1rem;
        margin-right: 1rem;
    }
}

# Dices

• Try to understand how these dices are constructed
• In this example, we have chosen not to fully optimise the code, but to code the flexbox properties per dice

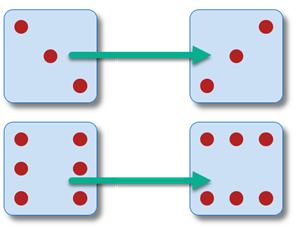

• A little exercise: change the orientation of dice 3 and dice 6
